Horizontal Slab – HH Series

Overview

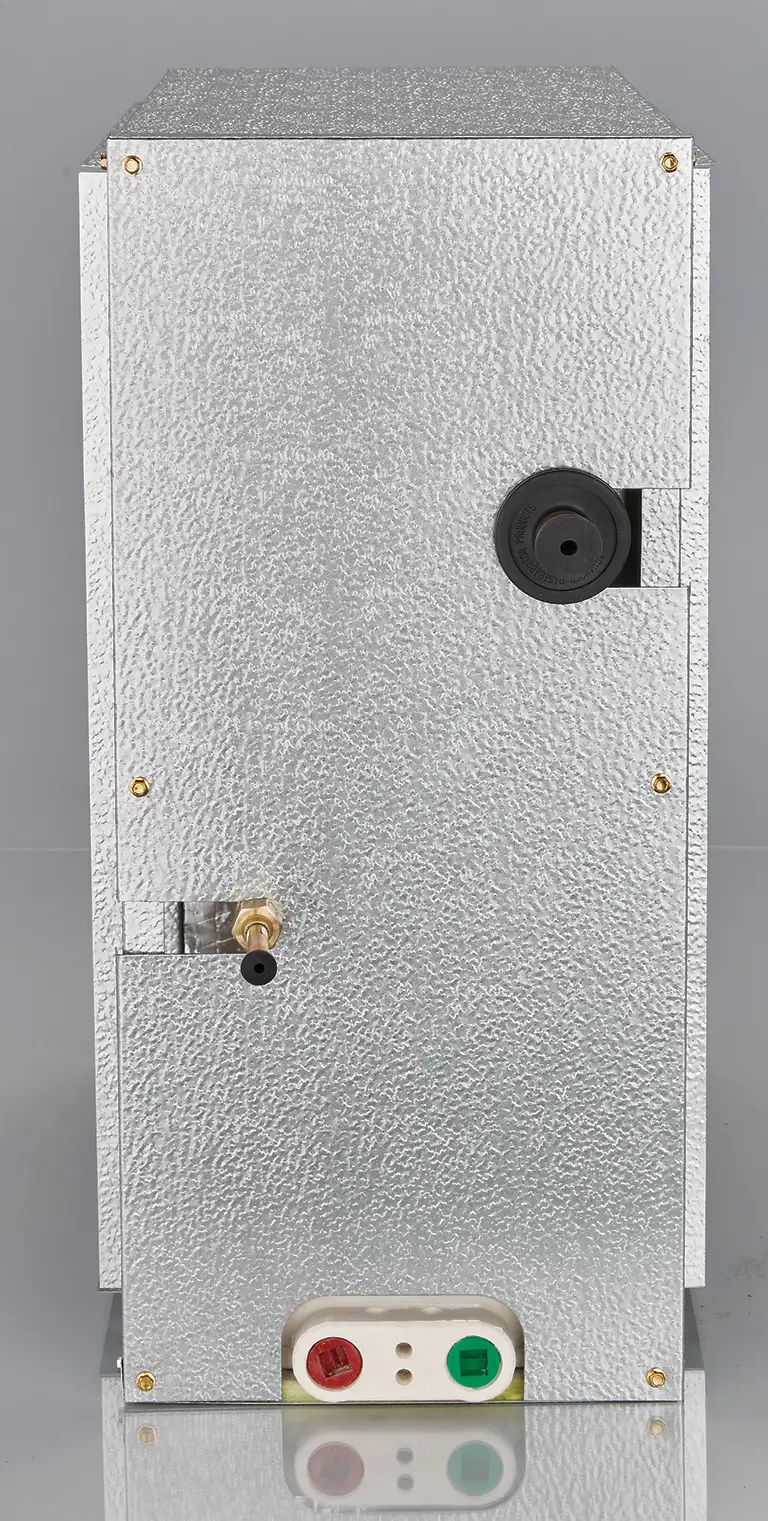

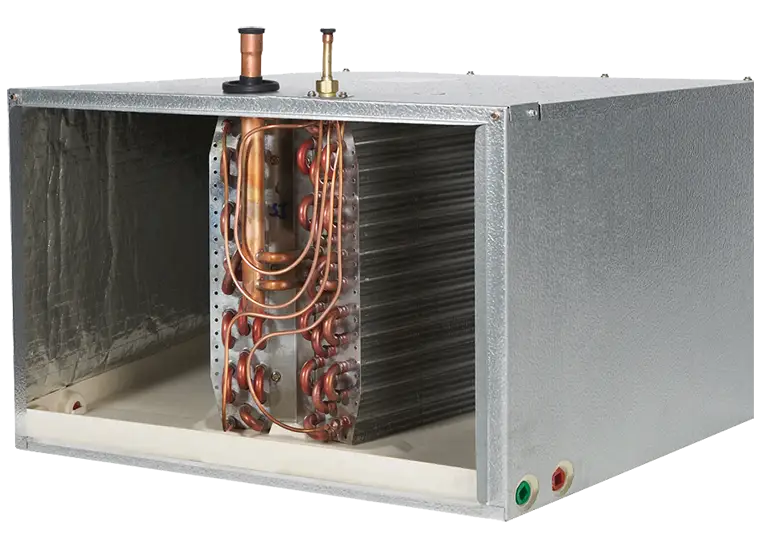

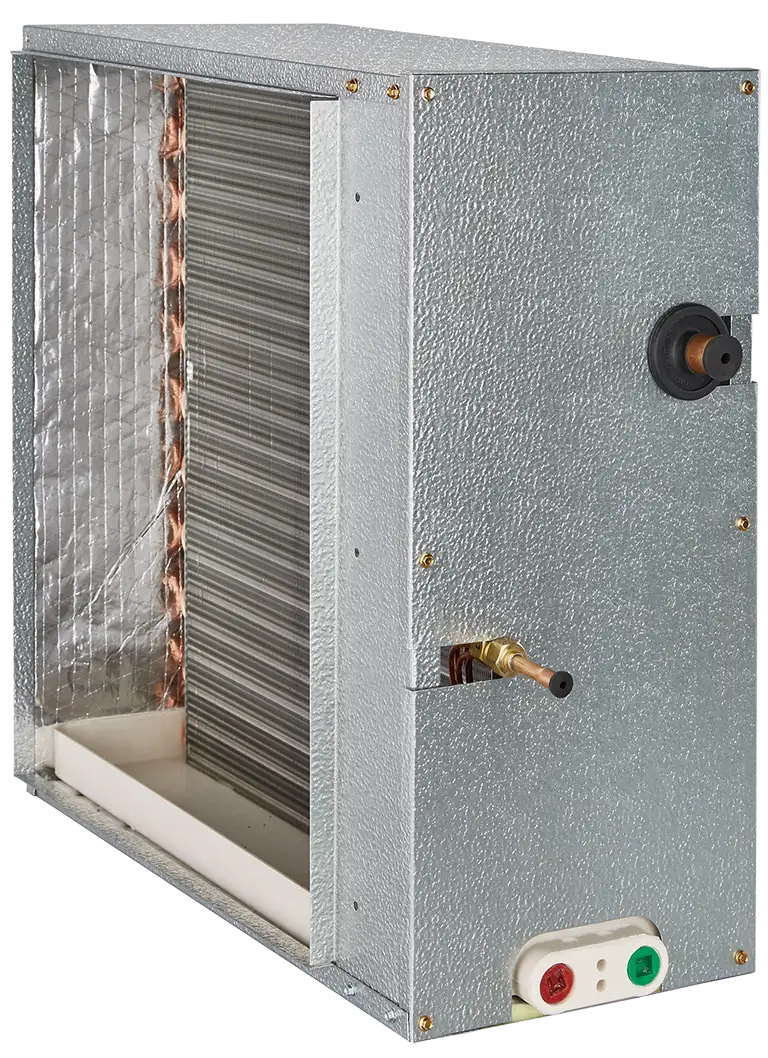

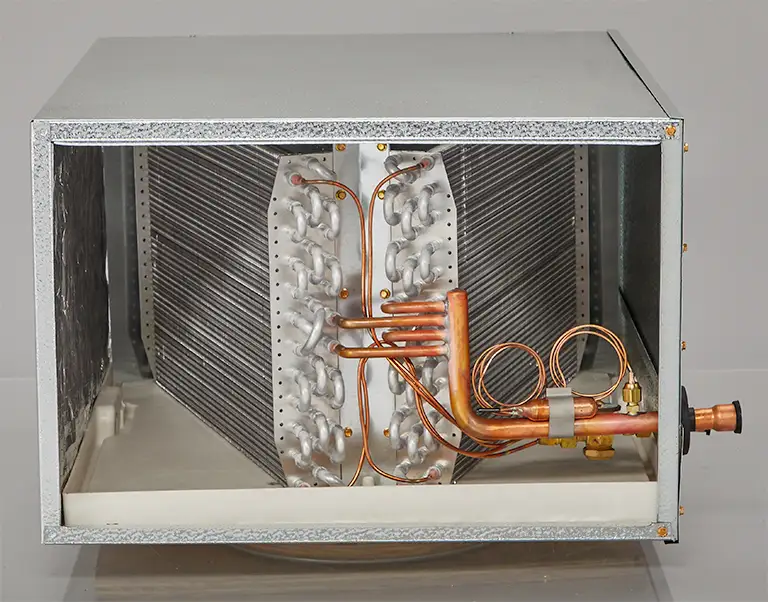

The HH Series premier horizontal evaporator coils match perfectly with any system and are thoroughly tested to ensure quality and save time on installation.

See Product Literature

Key Features

    • FlexCoil: Engineered for all refrigerants
    • Great for replacement of legacy applications
    • Dedicated Horizontal slab coils
    • Bi-directional airflow for installation flexibility
    • Available with piston or TXV factory installed

Specifications

    Size: Available 1.5 – 5 tons

Literature

HH Series Products are Most Suited in the Following Regions

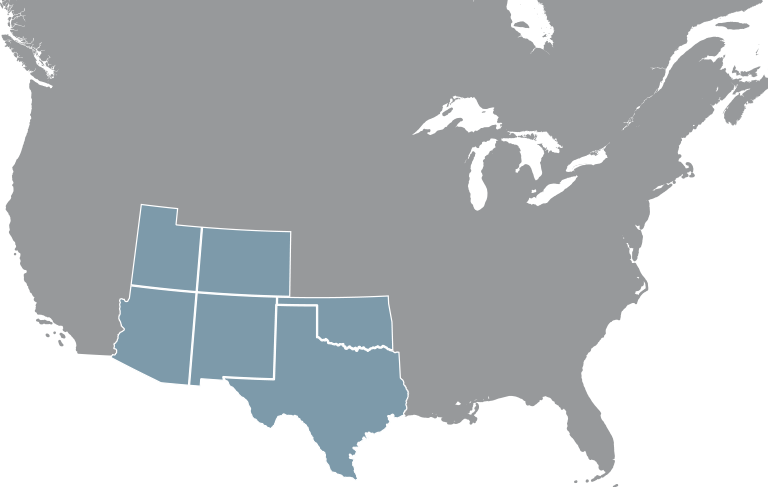

$URLMapContent.mapAltTag

Nomenclature

Product Nomenclature

H H57 1 24 A 185 A 21 02 AP
Cabinet Color
H =Embossed
Slab Number
Metering Device
1 =Piston (R-454B & R-32)1
A =R-454B Non-bleed HP-A/C TXV
B =R-32 Non-bleed HP-A/C TXV
C =R-454B Bleed HP-A/C TXV
Nominal MBTUH
Cabinet Depth
A =10"
Cabinet Opening Width[2]
185 =18 5/8"
225 =22 5/8"
265 =26 5/8"
305 =30 5/8"
365 =36 5/8"
425 =42 5/8"
Airflow
A = Bi-directional airflow
Cabinet Opening Height
21 =21 1/4"
Product Code
02 =Cased “H”
AP= TXV Access Port

[1] Depth is fixed, 10" is the only selectable option. [2] Cabinet opening width is not a selectable option, see dimensions. [3] Piston will always be sized to match the nominal BTU rating of the coil.
